FastLyse 24Biological Sample Rapid Preparation System
High-temperature Sterilization, Low-temperature Disruption, Efficient Centrifugation
An open, rapid, efficient, and high-throughput biosample pretreatment system integrating high-temperature inactivation, low-temperature disruption, and centrifugation. Process 24 samples simultaneously with one-click pathogen inactivation.
High-Temperature Inactivation
Fearless against pathogens
Built-in Centrifuge
Convenient and efficient
Low-Temperature Disruption
Sample safety ensured
Product Overview
FastLyse 24 Biological Sample Rapid Preparation System is an open, fast, efficient, and high-throughput biosample pretreatment platform. It integrates high-temperature inactivation, low-temperature disruption, and centrifugation capabilities. The new high-temperature inactivation program disables multiple pathogens with a single click, eliminating biosafety risks during extraction. It can rapidly process 24 samples simultaneously. With various compatible reagents, it performs cell disruption on samples from diverse sources—including clinical specimens, soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, and paleontological samples—quickly releasing native DNA, RNA, and proteins for downstream extraction and purification.
Core Features
Reduce Infection Risk
One-click heating inactivation eliminates pathogen biosafety risks; self-disinfection prevents cross-contamination; programmable procedures compliant with relevant standards.
Maintain Sample Activity
In low-temperature mode, samples can be mixed at low temperature to effectively preserve biological activity.
Works with More Samples
In heating mode, ideal for sample incubation. 4D disruption technology with continuous operation (up to 99 minutes) enhances nucleic acid and protein yield. Low-speed ultra-long continuous operation is optimized for genome preparation.
Enhanced Operational Experience
5.7-inch color touchscreen with a simple, clear interface; easy program setup and automatic continuous operation.
Sample Preparation Principle
Physical Method
Under 4D high-speed rotation, hard zirconia ceramic beads and other grinding media in the tube rapidly and thoroughly crush sample cell walls and nuclear membranes.
Chemical Method
During physical crushing, optimized reagents dissolve and denature the sample's cell membranes and proteins.
Biological Method
Add proteinase, lysozyme, and other reagents to the processing solution. The instrument automatically sets the optimal temperature for enzyme activation to further improve lysis efficiency.
Wide Applications
Various plant tissues, including roots, stems, leaves, flowers, fruits, seeds, and more.
Various animal tissues, including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph nodes, muscle, bone, and more.
Fungi, bacteria, viruses, and other samples
Food and Drug Ingredient Analysis & Testing
Adapters

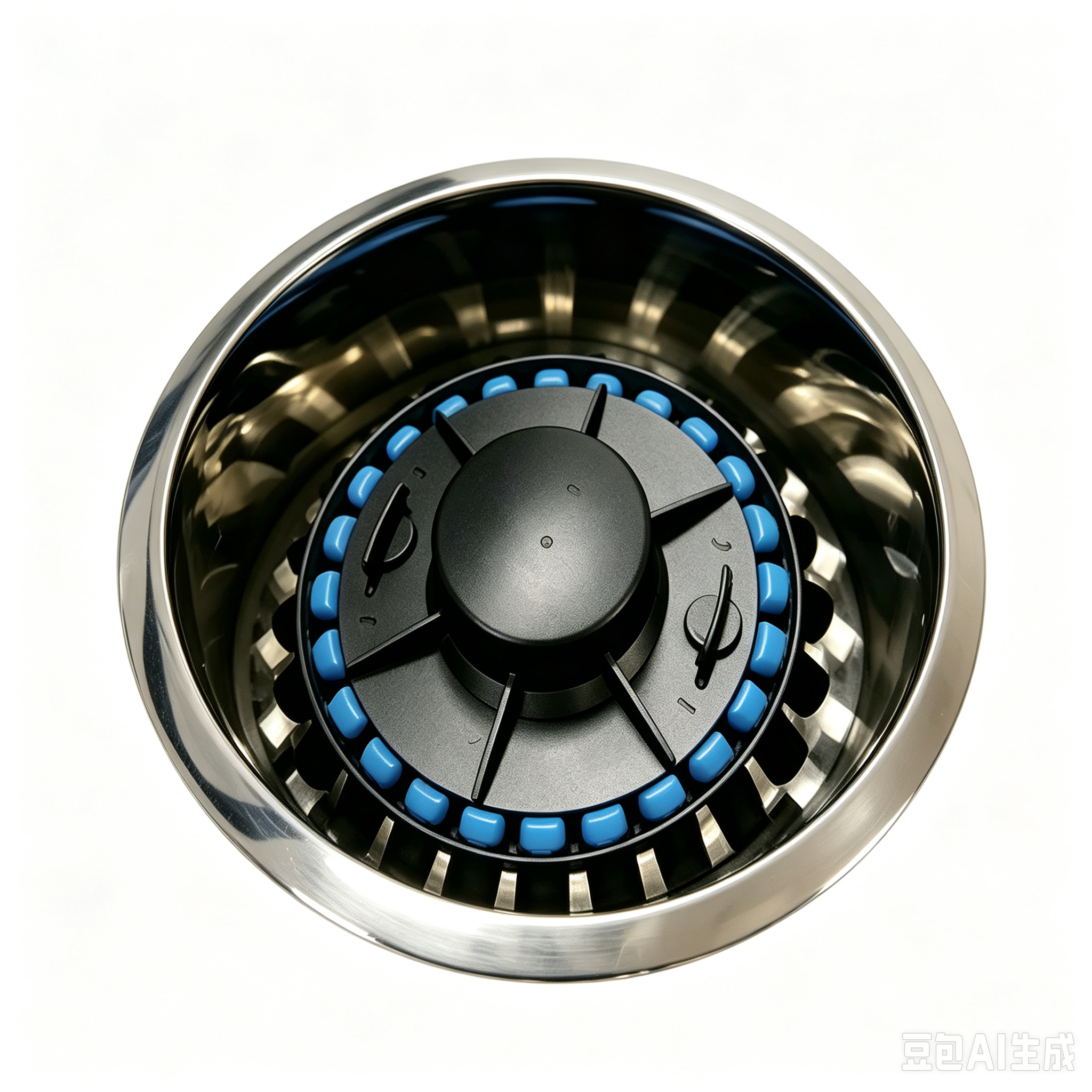

24 × 2 mL Adapter

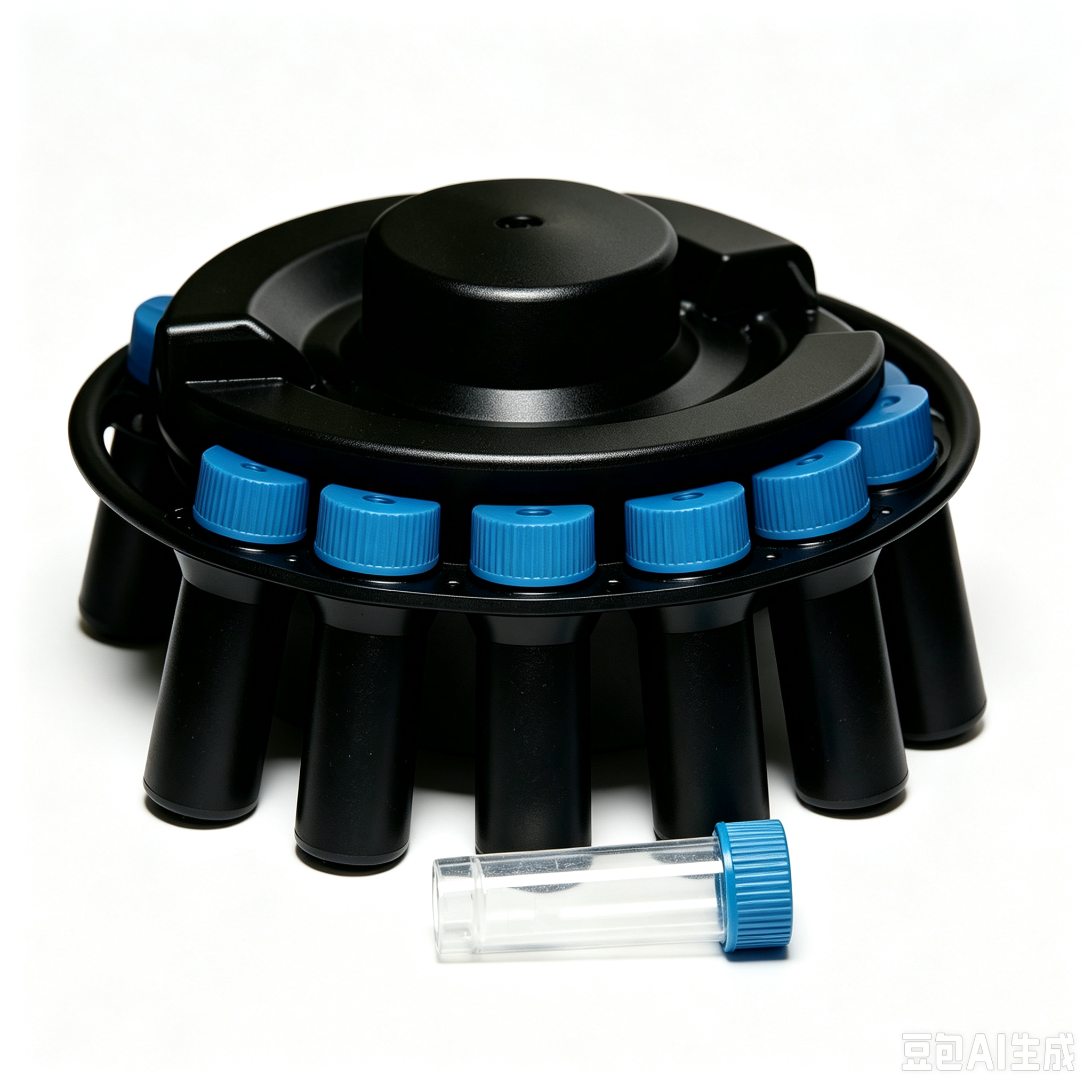

12×5mL Adapter

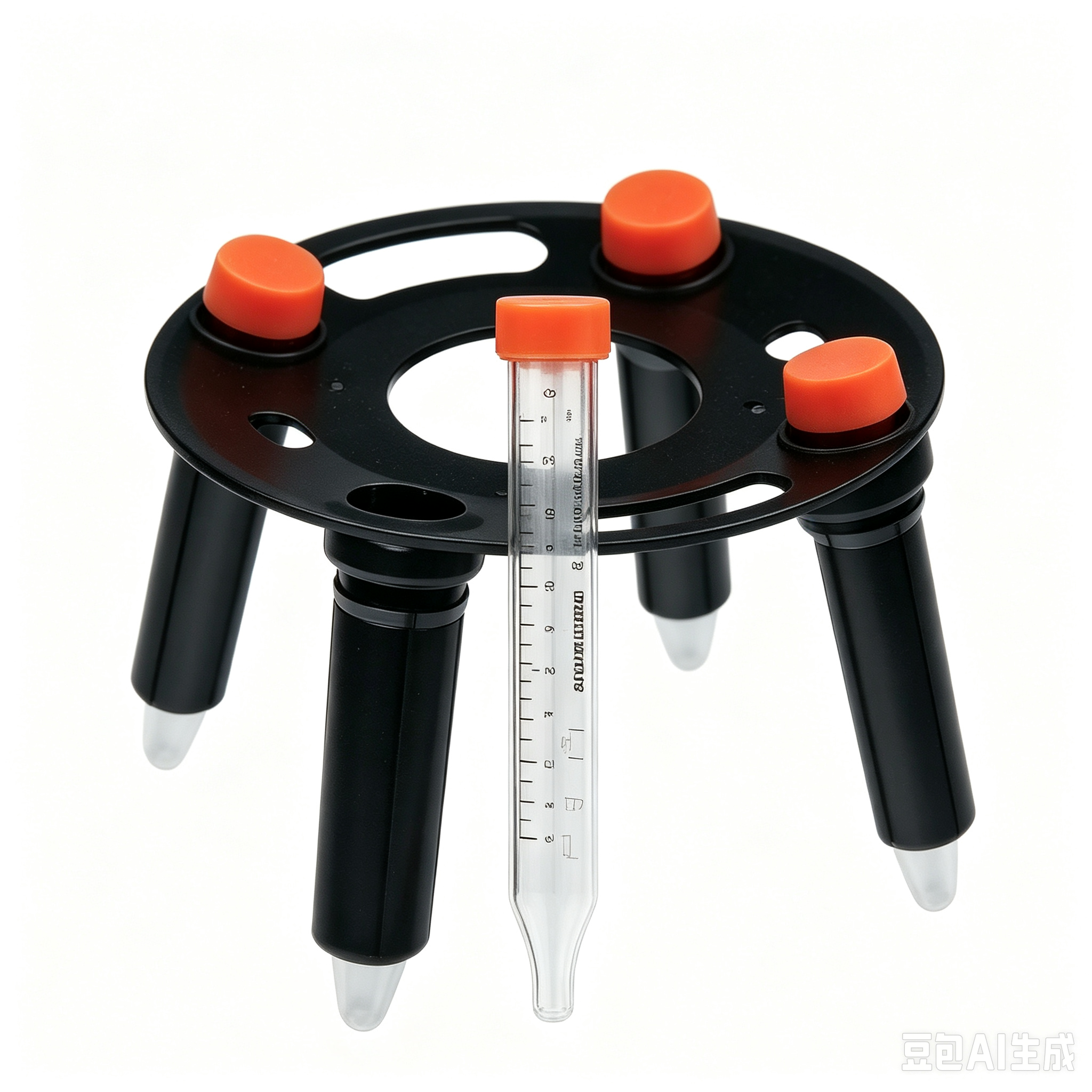

4×1 5mL Adapter
Grinding Effects

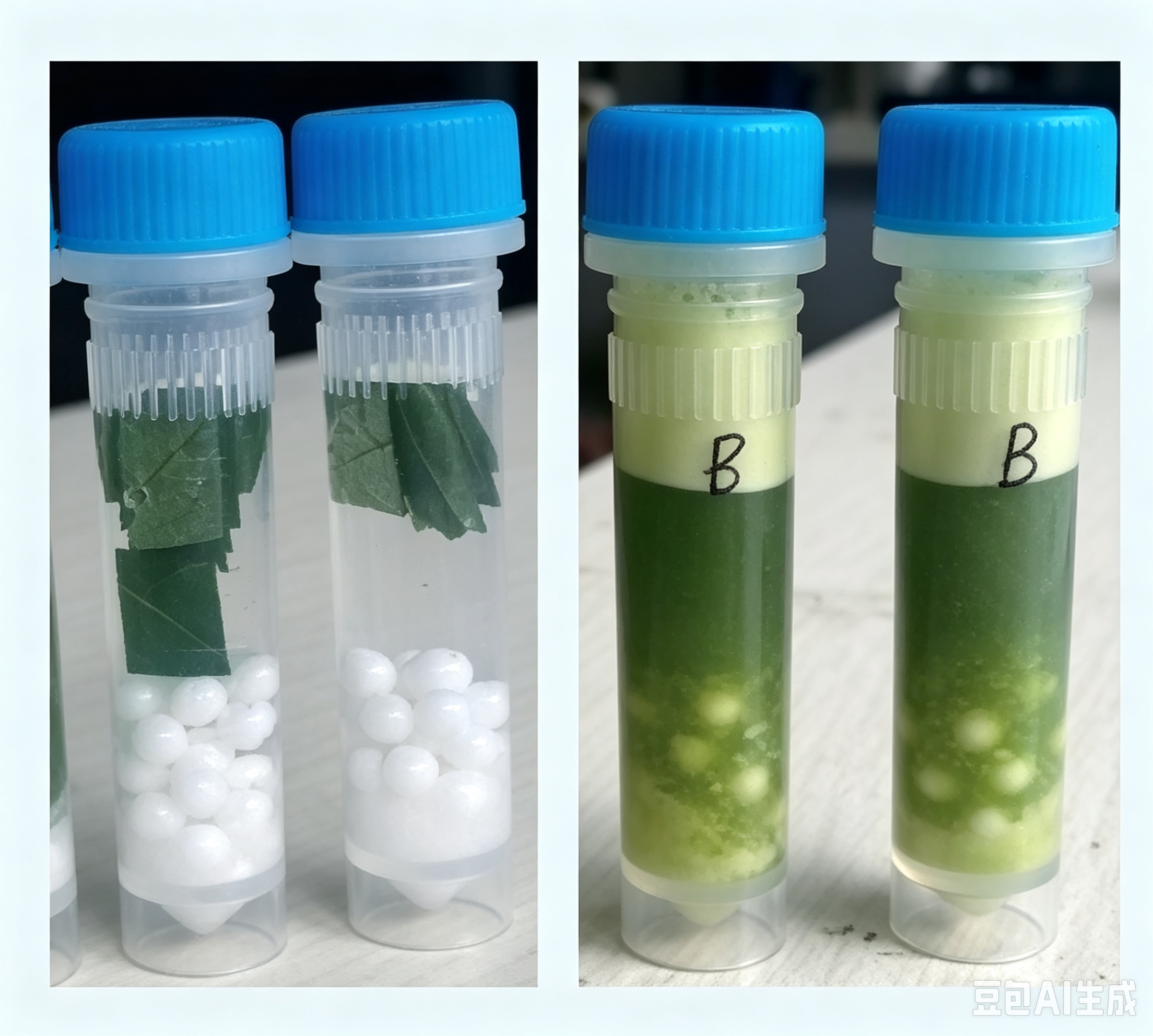

Leaf Grinding: Before & After

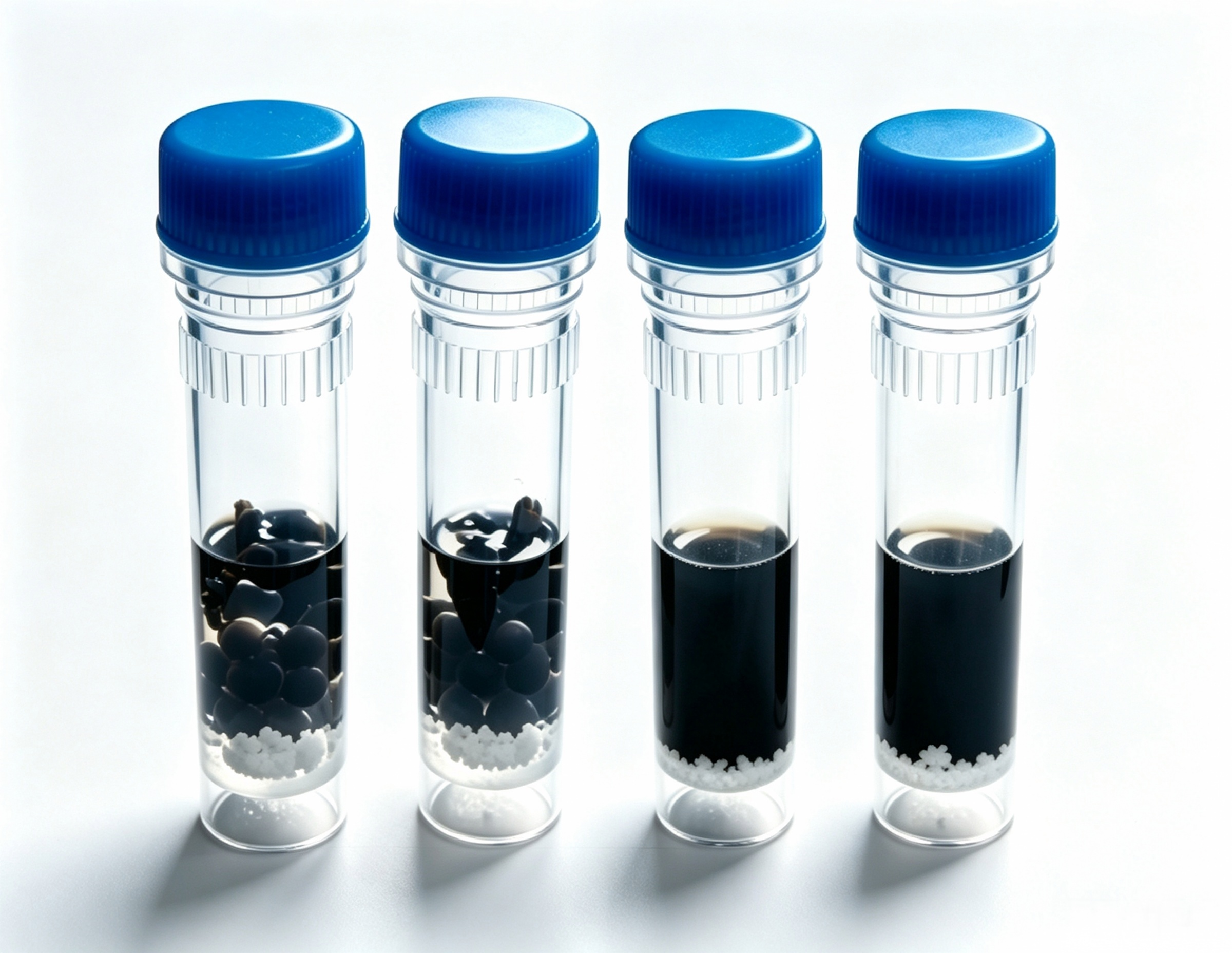

Before and After: Snail Grinding

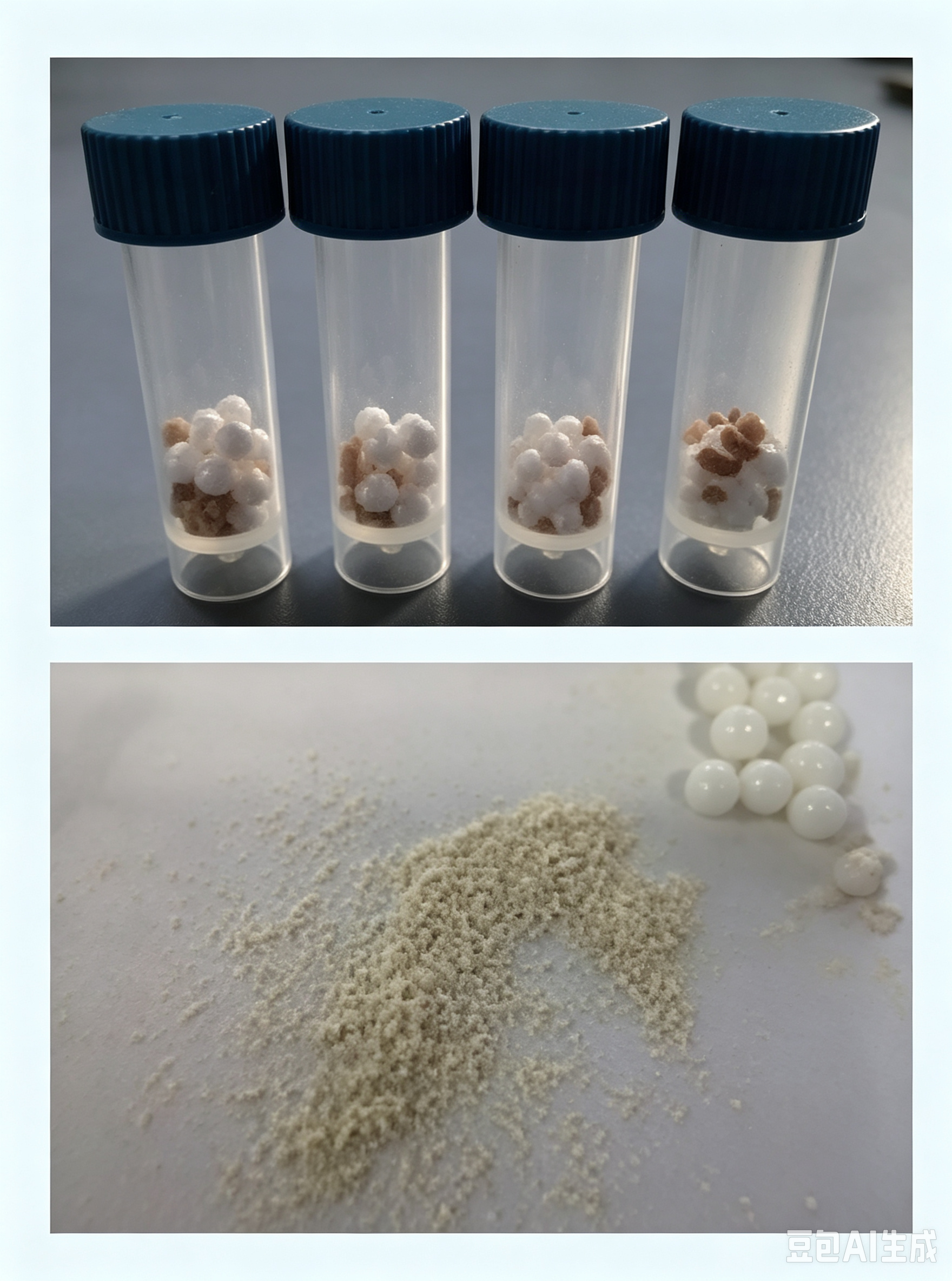

Dried Chicken Before and After Grinding

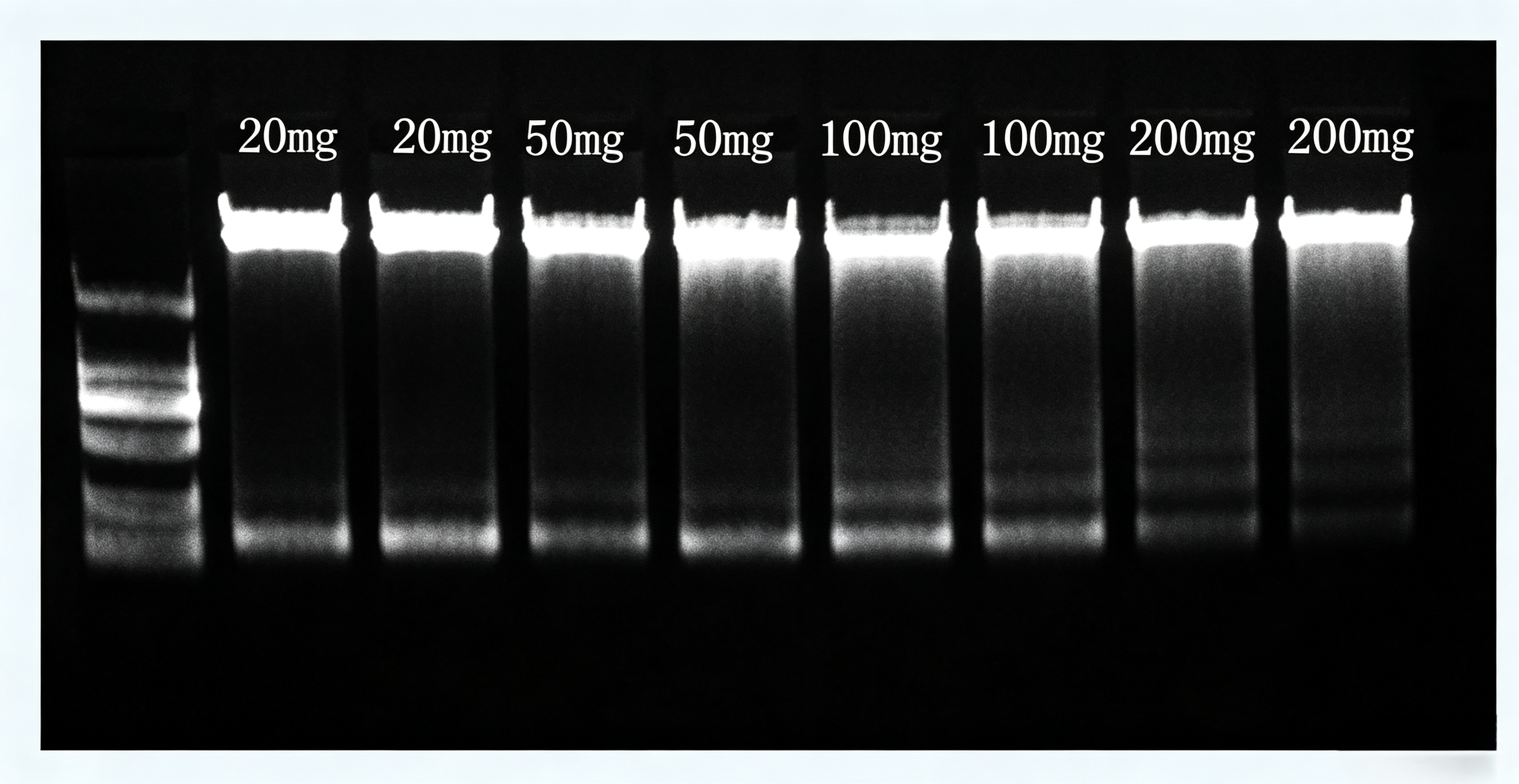

Electrophoresis Visible: 2 mg sample yields sufficient DNA, reducing sample consumption and improving purity.
Performance Specifications
| Attribute | Description |
|---|---|
| Sample Capacity | 24×2mL, 12×5mL***, 4×15mL*** |
| High-Temperature Inactivation* | Yes |
| Inactivation Temperature Range: ** | 37~95°C |
| Low-Temperature Disruption | Yes |
| Disruption Temperature Range | 0~37°C |
| Cooling Function | Yes |
| Centrifuge Function* | Yes |
| Centrifuge Speed ** | Max 600 RPM |
| Centrifuge Temperature Range | 0~37°C |
| Oscillation Speed | 2.00-6.50 m/s |
| Oscillation Mode | 4D Oscillation |
| Programs | Max 99 |
| Cycles | Max 99 cycles |
| Maximum Runtime | 99m 59s |
| Noise Level | ≤54db |
| Display | 5.7-inch touchscreen |
| Lid Protection | Yes |
| Consumables | |
| Power Supply | AC 200~240V 50/60Hz |
| Dimensions (L x W x H) in | 500×370×410 |
| Net Weight | 32Kg |
* Optional function module
** Available only when the corresponding function module is selected
*** If the centrifuge function is not selected, this capacity is optional.
