UCD-1500 Ultrasonic Cell Disruptor
Ultrasonic power supply with automatic frequency tracking for consistent cavitation efficiency
Automatic frequency tracking with real-time detection of the transducer's optimal resonant frequency to maintain consistent cavitation efficiency. Precise frequency control ensures uniform energy output throughout the process, a key requirement for experimental reproducibility. Processing volume: 50~1200 mL; Power: 1500W..
Product Overview
The UCD-1500 ultrasonic cell disruptor features a new digital power supply with an integrated high-performance DSP processor. Utilizing digital frequency synthesis and digital phase-locked loop composite control, it delivers precise automatic frequency tracking, high integration, and exceptional frequency adaptability. Available in standard, general-purpose, and pilot-scale models to handle various sample volumes, this series offers continuously adjustable time and power settings. It effectively disrupts animal and plant tissues, cells, and bacteria, and is also ideal for emulsification, separation, dispersion, extraction, cleaning, and accelerating chemical reactions.

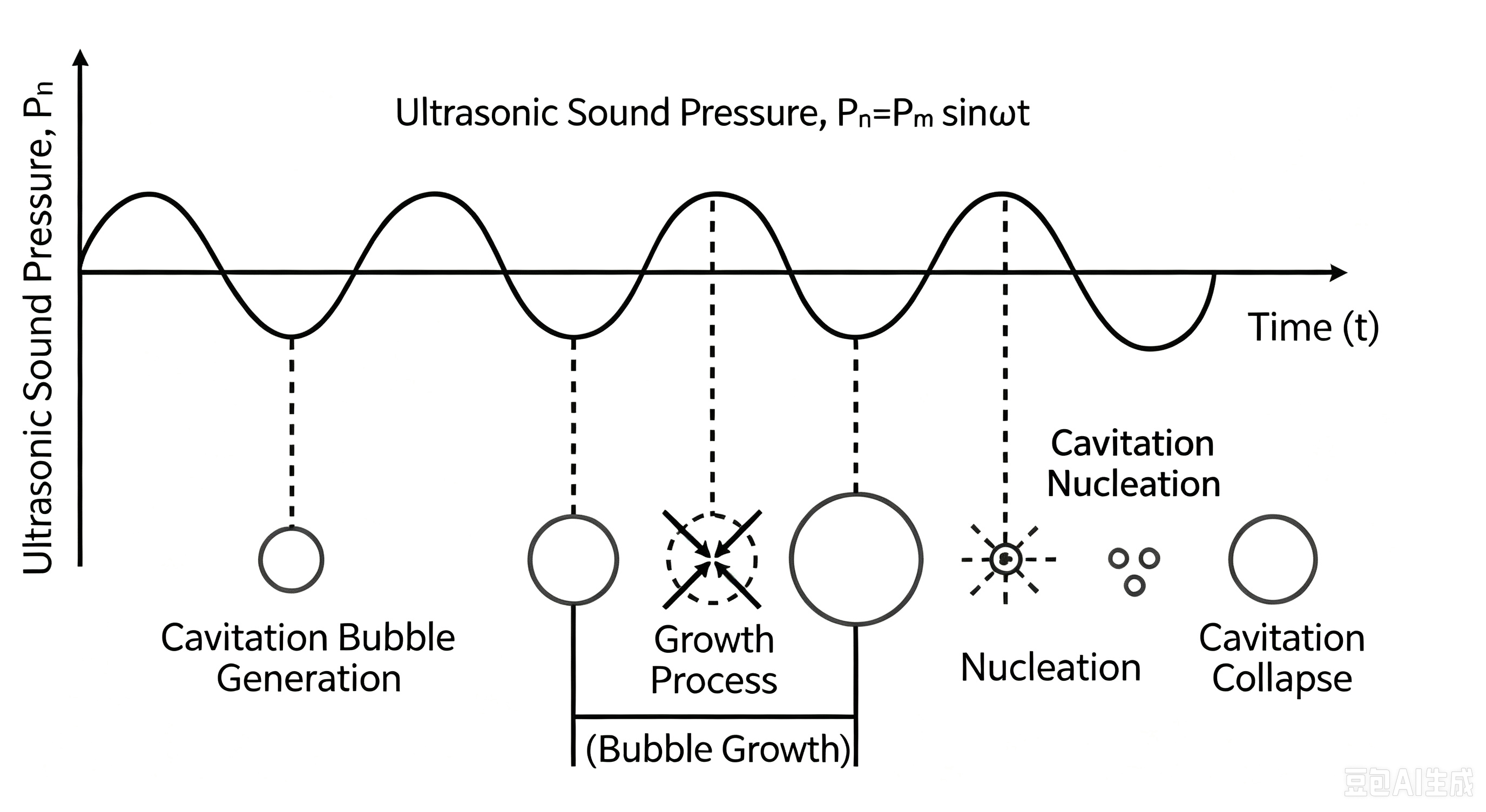

How It Works
Leveraging the cavitation effect of ultrasonic waves in liquids, the transducer converts electrical energy into high-intensity shear forces at the tool head via the horn. This creates rapid, alternating pressure cycles that cause bubbles to expand and collapse violently, rupturing cells. Additionally, intense acoustic turbulence accelerates particles, driving collisions between particles or with vessel walls to achieve cell disruption, emulsification, and separation.
Core Features
Digital Power Supply
Adaptive optimal frequency with no manual adjustment required; automatically tracks the best frequency.
Multi-Stage Ultrasonic
Customizable multi-stage ultrasonic program combinations for diverse complex use cases.
Flexible Parameters
Ultrasonic time and power continuously adjustable with high stability.
Smart Storage
Create and store up to 50 operation program sets.
High-Amplitude Ratio Transducer
Transducer amplitude ratio up to 696.96, delivering powerful energy.
High Safety
Over-temperature, time, and fault alarms.
Electric Lift Base
Adjust base position with up/down buttons to eliminate tedious manual operation.
Visual Process
Transparent front door with built-in LED lighting.
Application Areas
Bioengineering
- •Cell, bacteria, virus, spore, and other cellular structure disruption
- •DNA fragmentation for high-throughput sequencing and ChIP (non-contact sonication)
Food Engineering
- •Beverage Homogenization via Ultrasonic Technology
- •Wine Aging Acceleration Technology
- •Accelerated dissolution and chemical reactions, such as oil processing
Environmental Engineering
- •Soil and rock sample homogenization
- •Research on Rock Structural and Physical Properties
Biopharmaceutical
- •Dispersion of injectable pharmaceutical substances
- •Extraction and Dispersion of Traditional Chinese Medicine
- •Cracking, emulsification, homogenization, and disruption of carbon nanotubes, rare earth materials, and other particles
Performance Specifications
| Attribute | Description |
|---|---|
| Model | UCD-1500 |
| Operating Frequency | 19.5-20.5 kHz auto-tracking, adaptive |
| Sample Processing Volume | 50~120 ml (requires corresponding probe) |
| Optional Horns | Φ15, Φ20, Φ28 |
| Optional Beakers | 100ml, 400ml |
| Ultrasonic Power | 1500W |
| Output Power | 1~100% |
| Ultrasonic Power Adjustment | Step-by-step 1% continuous fine adjustment; pulse and continuous modes with test function |
| Program Storage | 50 sets |
| Multi-Stage Program | 6 stages |
| Timer | 1~999 min |
| Temperature Control | With temperature sensor: controls sample temperature (0°C–99°C) |
| Alarm | Temperature, Duration, Fault |
| Screen Display | Power, temperature, duration |
| Soundproof Enclosure | Automatic soundproof enclosure with electric lift mechanism, 1 unit included |
| Dimensions (W × L × H) | 345*345*535mm |
| Standard Configuration | Generator (main unit) x1; Titanium alloy transducer x1; Φ25mm probe x1 |
Interested in the UCD-1500 Ultrasonic Cell Disruptor?
Contact us for more information, pricing, and technical support.
